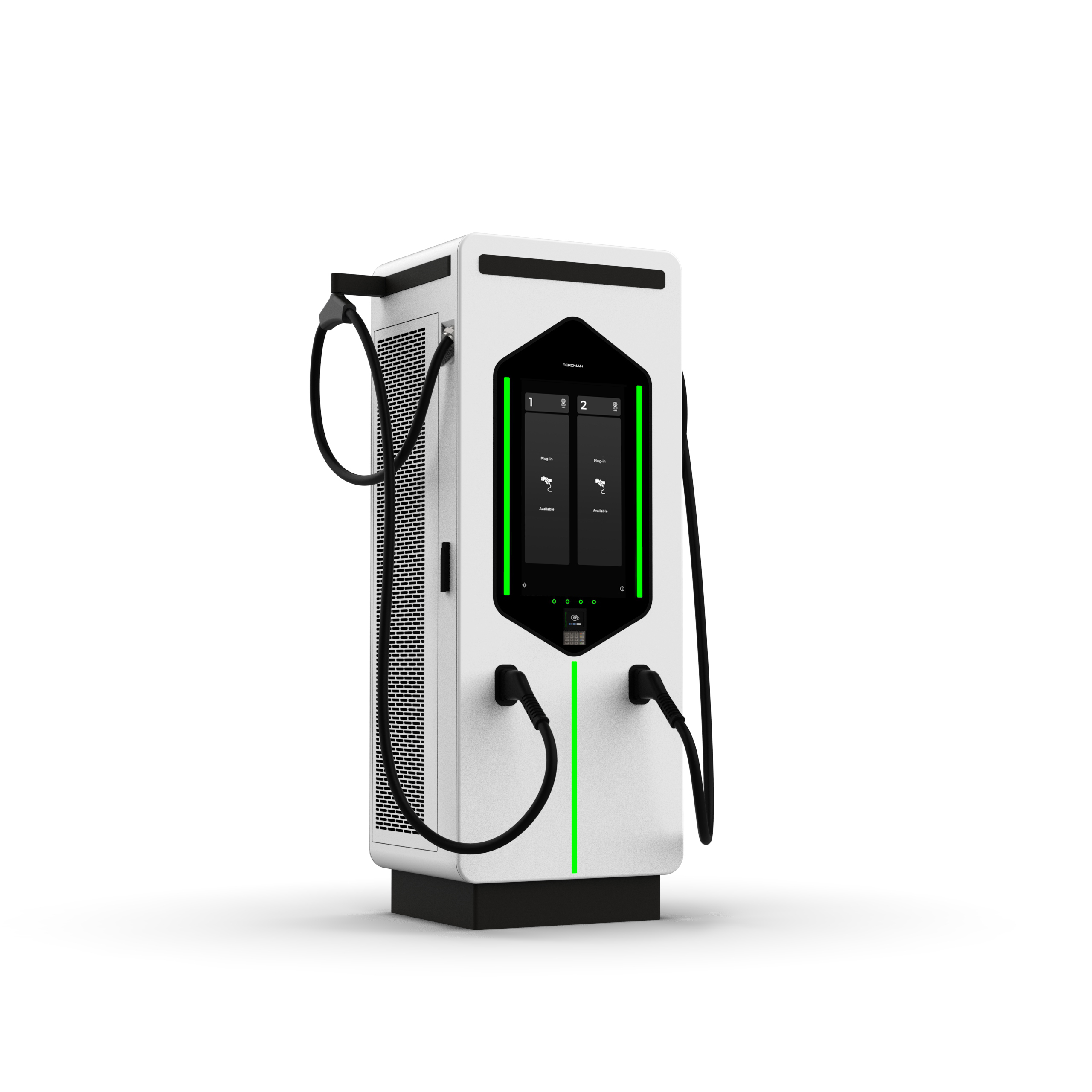

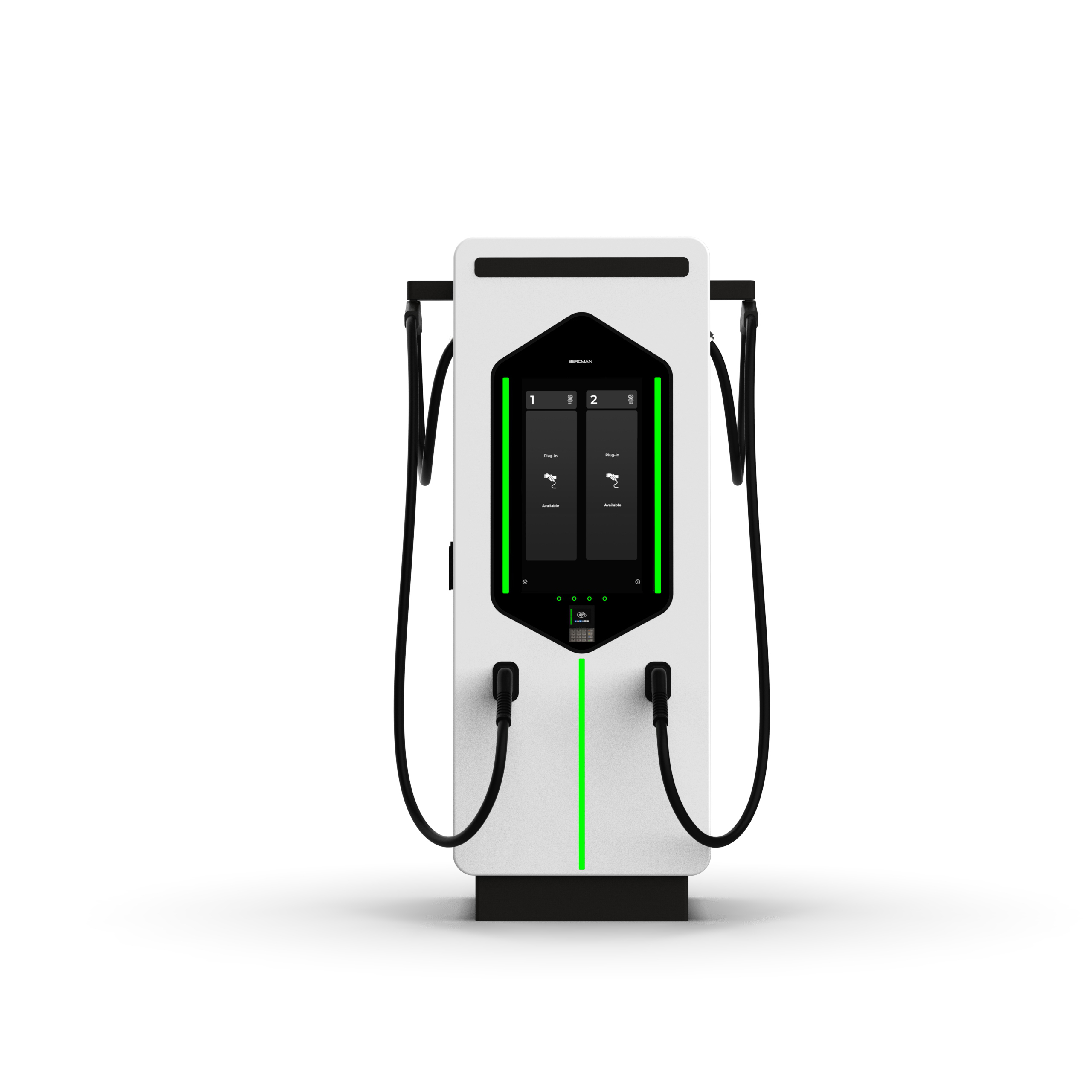

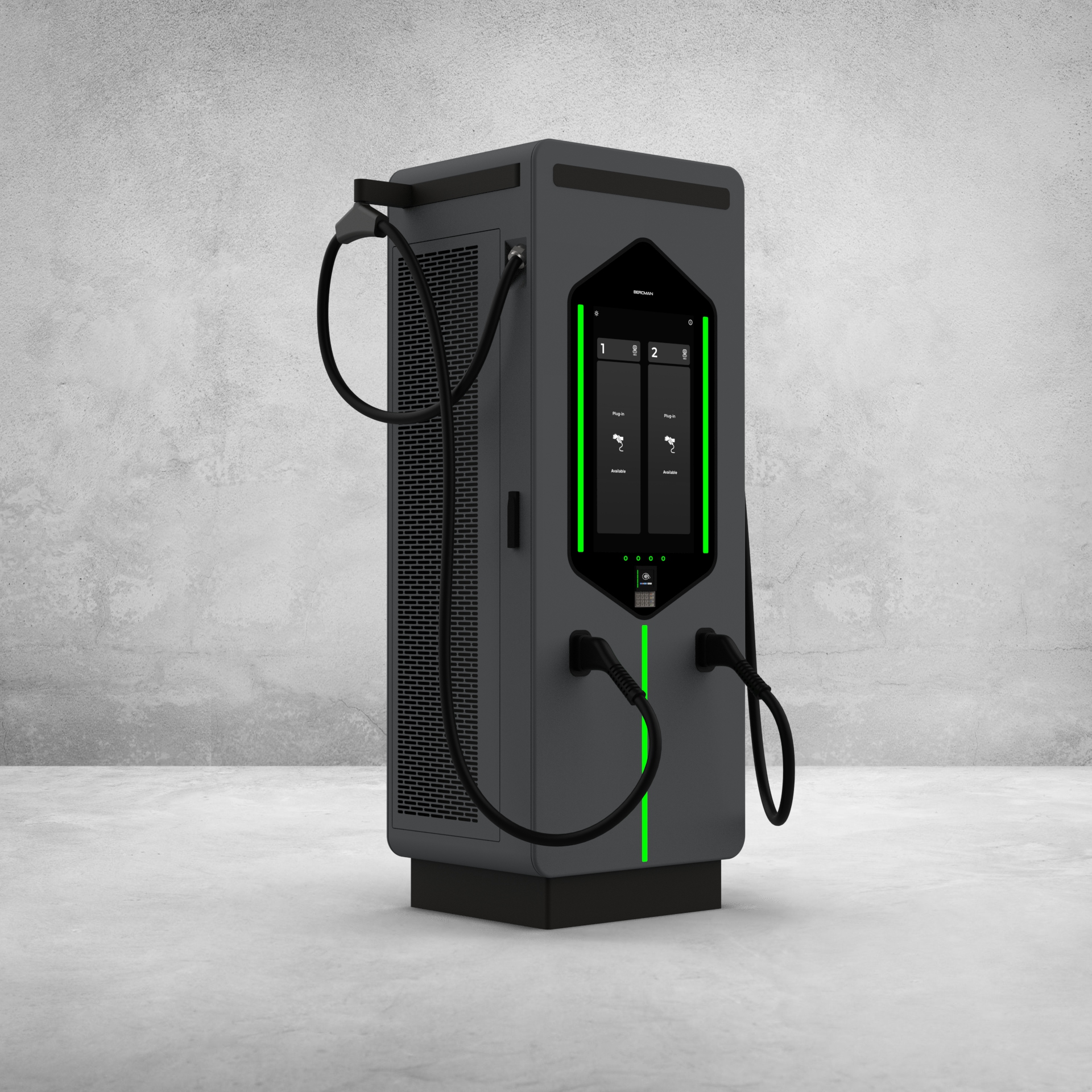

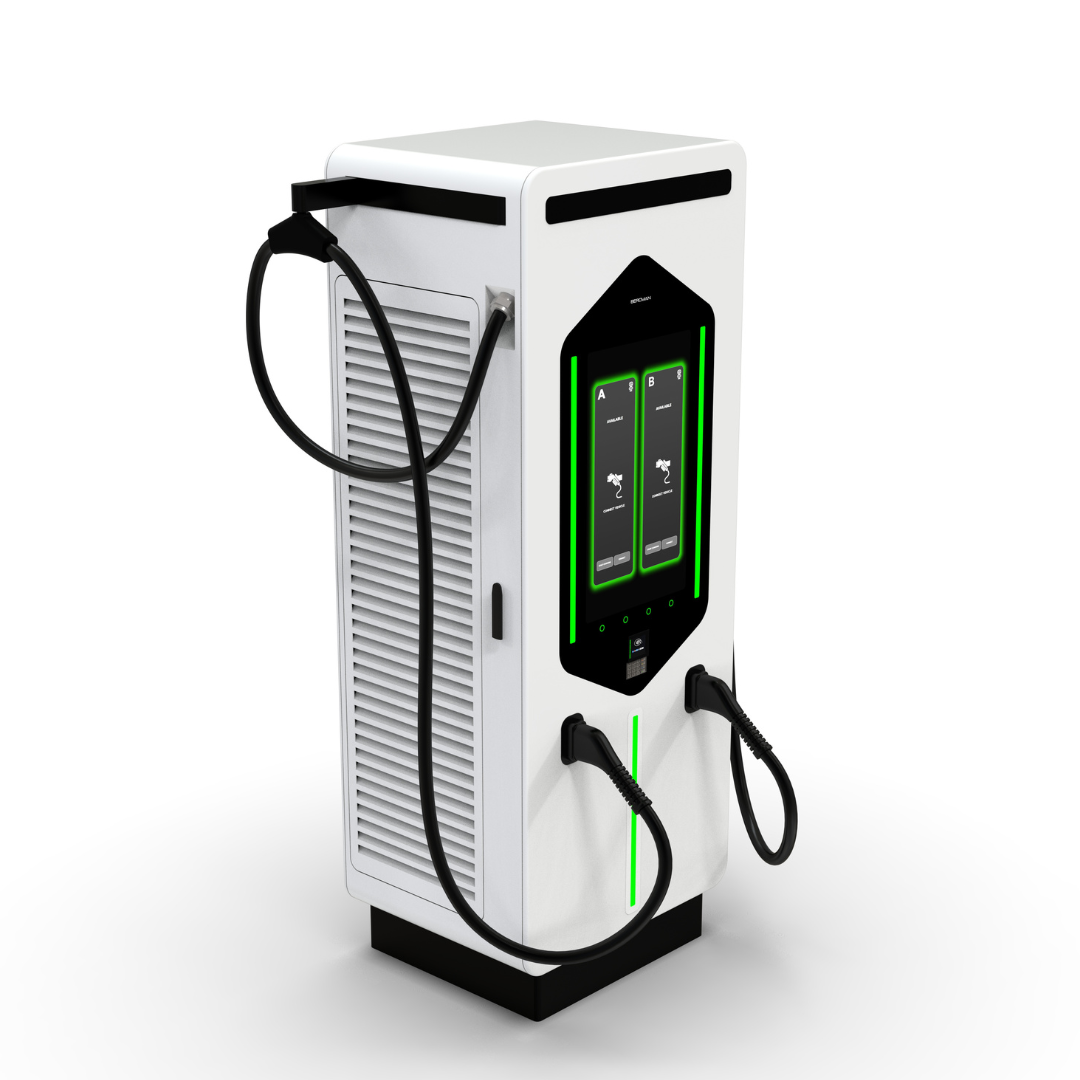

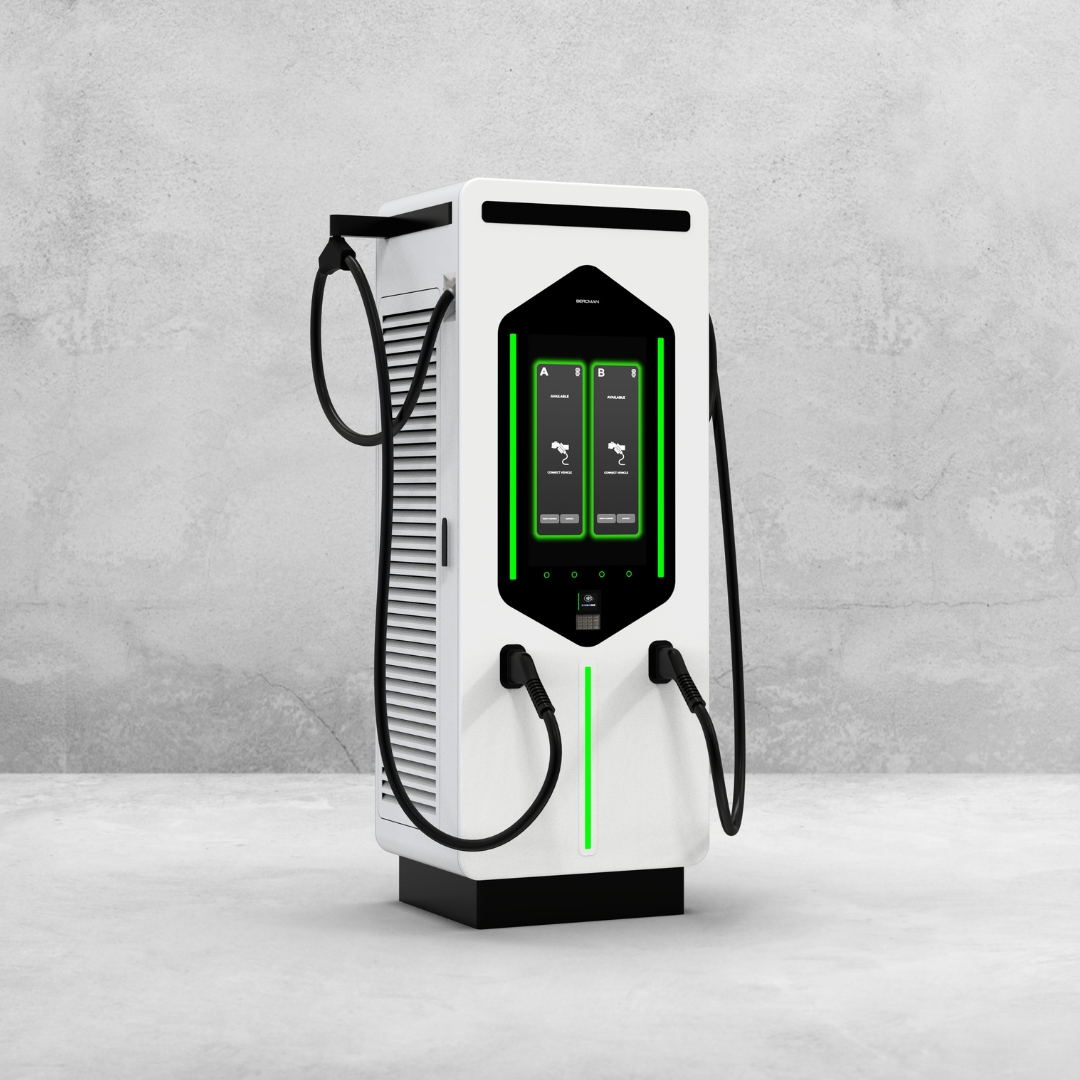

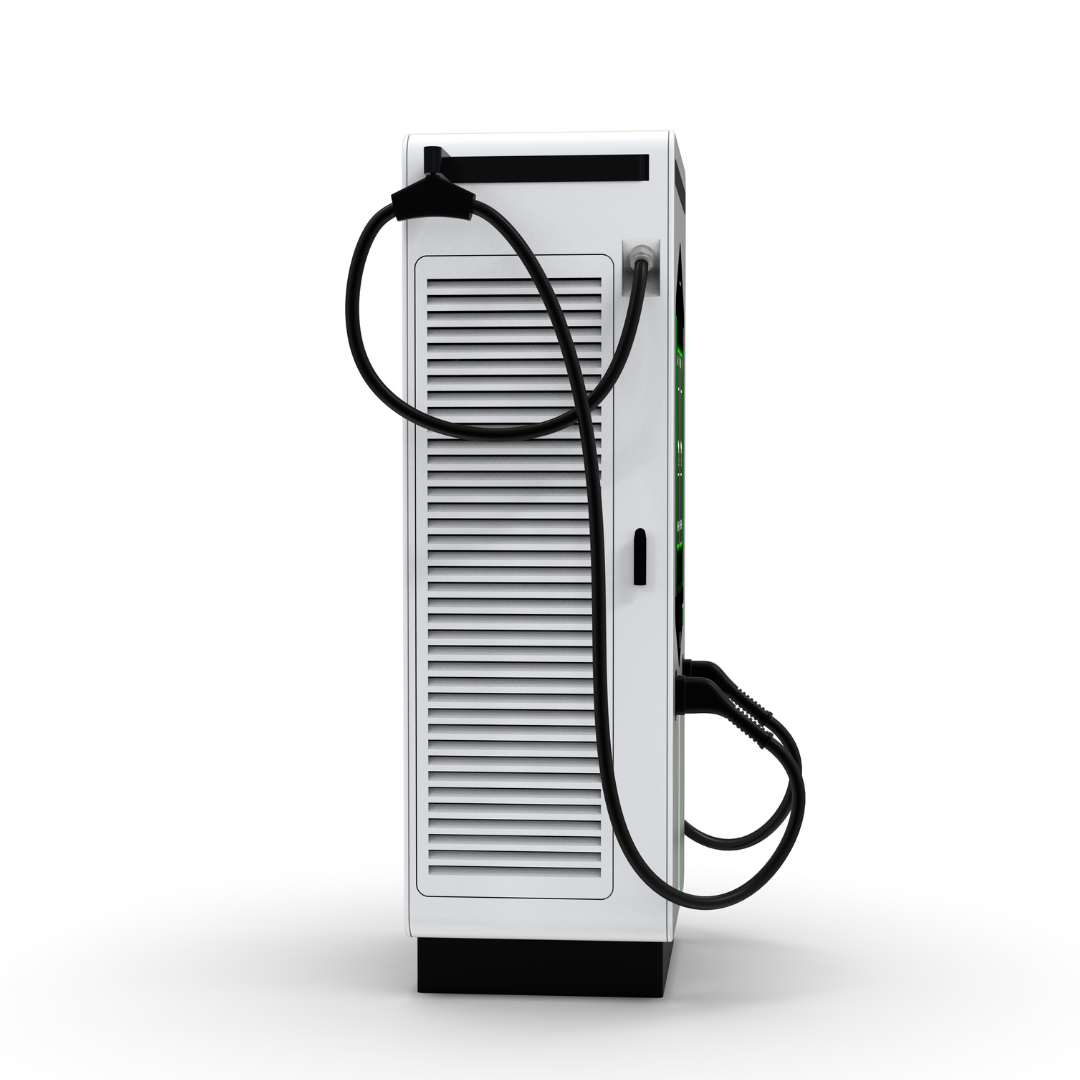

The DC-1 is engineered for operators who need reliable, scalable and future-ready DC charging infrastructure.

Key advantages

• Up to 600 kW DC charging power
• 2 x CCS2 charging outlets
• Dynamic Load Balancing
• 32” full-colour display for advertising and user guidance
• OCPP 1.6J+ (current); 2.0.1 (upgrade ready) backend connectivity
• RFID/NFC, Plug & Charge and optional POS terminal
• Outdoor-ready IP54 and IK10 protection
• Remote access and OTA software updates

The DC-1 is designed to grow with your charging demand.

With air-cooled cables, the charger can be scaled from 50 kW up to 400 kW in 50 kW steps. For higher-power applications, liquid-cooled cable configurations support 450 kW to 600 kW, also upgradeable in 50 kW steps.

The DC-1 distributes available power intelligently between charging outlets based on real-time demand. This helps optimise charging performance, maximise charger utilisation and support efficient operation at busy EV charging sites.

• Maximum DC power: Up to 600 kW
• Outlet options: 2 x CCS2
• Output voltage range: 150–1,000 V DC
• Display: 32” full-colour LCD screen
• Protection rating: IP54, IK10
• Operating temperature: -40°C to +50°C
• Efficiency: ≥97%
• Power factor: >0.99
• Backend connectivity: OCPP 1.6J+
• Network connection: Ethernet, GSM, GPRS, UMTS, LTE
• Authentication: RFID/NFC, Plug & Charge, optional POS
• Cable length: 5 or 7 metres
• Standards: IEC 61851, ISO 15118, DIN 70121, IEC 62196-3
